01 · 20–1000 kW

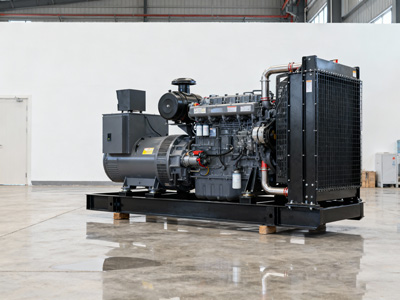

Standard open-frame sets
Base-frame set with exposed engine and alternator. The most economical option for indoor plant rooms and generator halls.
Steel base frameAnti-vibration mounts
Generator sets for every duty cycle
Ten configurations and thirteen standard ratings from 20 kW to 1000 kW. Choose the enclosure, the engine brand and the control system — we build the set around your specification.
Configurations
Ten ways to package the same reliable power.
Every configuration below is available across the power range, subject to the enclosure size required by the engine.
02 · 20–1000 kW
Silent canopy sets
Acoustically lined canopy with lockable service doors, designed to keep noise inside the enclosure.
≤75 dB(A) @7 mPowder-coated steel
03 · 20–1000 kW
Weatherproof sets
IP54-rated canopy for outdoor installation where rain, dust and sun exposure have to be tolerated.
IP54 enclosureRoof-mounted exhaust
04 · 20–500 kW
Trailer-mounted sets
Silent canopy mounted on a road-going trailer chassis with lights, handbrake and towing eye.
Road lightsTow bar & jockey wheel
05 · 100–800 kW
Truck-mounted units
High-capacity mobile power for utilities, emergency response and large construction programmes.
Heavy chassisCable reels optional
06 · 500–1000 kW
Containerised modules
ISO footprint enclosures for data centres, district power and remote sites. Multi-set layouts available.
ISO 20 ft / 40 ftMulti-set ready
07 · 100–1000 kW
Mobile power vehicles
Self-propelled power supply vehicles for utilities, events, and disaster recovery operations.
Vehicle integrationCable van options
08 · 20–1000 kW
Automatic standby sets
Auto-start panel with mains failure sensing and ATS changeover for unattended standby duty.
ATS changeoverAuto start / stop
09 · modular
Paralleling systems
Two or more sets sharing load, with synchronising and load-sharing control for expandable capacity.
Load sharingN+1 redundancy
10 · accessories
Panels, alternators & parts
Control panels, ATS cabinets, brushless alternators and spare part kits for new builds and retrofits.
AMF / ATS panelsBrushless alternators
Engine & alternator options
Specify the brand your market knows.
The engine determines the service network, the emission level and the price. We quote the brand you ask for and always offer an equivalent alternative with the same footprint and rating.
Cummins / Dongfeng Cummins
30–1000 kW. Global spare parts network and high resale value. The default choice for industrial standby and continuous duty.
StandbyPrimeIndustrial
Volvo Penta
80–500 kW. Low emissions and low noise with excellent fuel economy. Common in hospitals, hotels and data centres.
Low noiseLow emission
Yuchai
20–800 kW. Complete series with a dense service network and competitive pricing across the whole range.
Full seriesValue
Perkins
20–500 kW. Compact and efficient, well suited to mobile units and rental fleets with high utilisation.
CompactEfficient
Weichai & Shangchai
20–800 kW. Technically mature platforms with short lead times and readily available parts.
Fast deliveryMature design
Doosan, Deutz & MTU
60–1000 kW. Selected for high-load, continuous and harsh-environment projects where duty cycle is severe.
Heavy dutyContinuous
Alternators
Brushless, single-bearing or double-bearing alternators with IP23 protection and class H insulation. Stamford, Leroy-Somer or equivalent, matched to the engine rating.
Control systems
Manual, auto-start or AMF panels with over/under voltage, over-current, low oil pressure, high coolant temperature and over-speed protection, plus remote monitoring options.
Power range
Standard ratings from 20 kW to 1000 kW.
Indicative data at 400 V / 50 Hz, 1500 rpm, open-frame configuration. Ratings at 60 Hz and other voltages are available on request.
| Model | Prime power | Standby power | Engine options | Fuel use @75% load | Weight (approx.) |
|---|---|---|---|---|---|
| DP-20 | 20 kW | 22 kW | Yuchai, Perkins | 3.1 L/h | 750 kg |
| DP-30 | 30 kW | 33 kW | Yuchai, Perkins, Weichai | 4.7 L/h | 900 kg |
| DP-40 | 40 kW | 44 kW | Yuchai, Cummins, Perkins | 6.2 L/h | 1050 kg |
| DP-64 | 64 kW | 70 kW | Yuchai, Cummins | 10.0 L/h | 1350 kg |
| DP-80 | 80 kW | 88 kW | Yuchai, Cummins, Volvo | 12.5 L/h | 1650 kg |
| DP-100 | 100 kW | 110 kW | Cummins, Yuchai, Volvo | 15.6 L/h | 1900 kg |
| DP-150 | 150 kW | 165 kW | Cummins, Volvo | 23.4 L/h | 2500 kg |
| DP-200 | 200 kW | 220 kW | Cummins, Volvo, Weichai | 31.2 L/h | 3100 kg |
| DP-300 | 300 kW | 330 kW | Cummins, Volvo, MTU | 46.8 L/h | 4200 kg |
| DP-400 | 400 kW | 440 kW | Cummins, Volvo | 62 L/h | 5200 kg |
| DP-500 | 500 kW | 550 kW | Cummins, Volvo, MTU | 78 L/h | 6200 kg |
| DP-800 | 800 kW | 880 kW | Cummins, MTU | 125 L/h | 9500 kg |
| DP-1000 | 1000 kW | 1100 kW | Cummins, MTU | 156 L/h | 11800 kg |
Weights refer to an open-frame set without fuel. Dimensions, fuel consumption and weight are confirmed in the technical proposal for each enquiry.

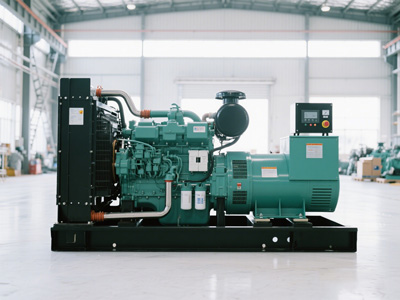

Build examples
Sets leaving our line.
Assembled, load tested and packed in Chongqing. Photographs of your own unit are shared during production.
Supply scope
What is included, and what can be added.
Standard supply scope
- Diesel engine with 24 V electric starter and charging alternator
- Brushless AC alternator matched to the engine rating
- Steel base frame with anti-vibration mounts
- Radiator, engine-driven fan and exhaust silencer
- Control panel with automatic start and engine protection
- Moulded case circuit breaker, battery and battery cables
- Built-in fuel tank where the configuration allows
- Operation manual, wiring diagram and factory test report
Popular options
- ATS / AMF changeover panel and remote monitoring module
- Silent, weatherproof (IP54) or containerised enclosure
- Trailer chassis with road lights and towing equipment
- Paralleling panel with synchronising and load sharing
- Coolant and lube oil heaters for cold climates
- Dual fuel tanks, bunded base and fuel polishing
- High voltage output at 6.3 kV or 10.5 kV
- Spare parts kit, tool kit and commissioning service
Need a configuration that is not listed?
Send us the load list, voltage, frequency and site conditions. We will propose the rating and enclosure that fit, with a price for your market.
